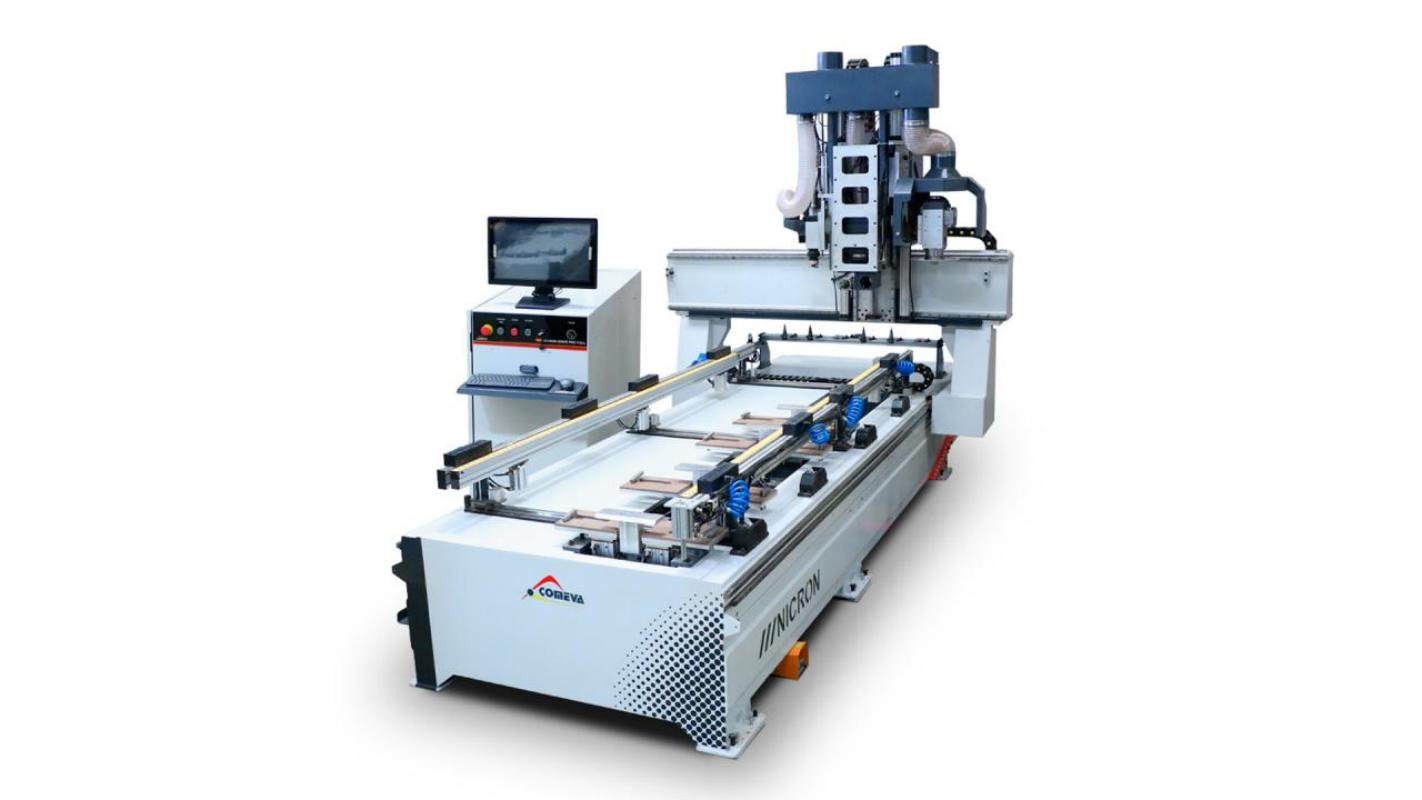

CNC MACHINING CENTER NICRON DOOR PRO FULL

Ref:
320205-0
REQUEST INFORMATION

Consent

CNC MACHINING CENTER NICRON DOOR PRO FULL

Additional Information

Working area@1300x3200x200 mm|Type of table@2 bars + 8 vacuum cups|Number of milling motors@4|Composition of working groups@2 vertical + 1 horizontal+ scie|Vertical milling motor power@9 kw ATC|Horizontal double exit motor power@3.5 Kw|Saw motor power@4 Kw|Axis movement speed@50 m/min|Numerical control@OSAI|Type of displacement motors@Servomotors|Reference stops@5 pcs|Software@COMEVA DOORS|Work code@Iso Language code G|Linear guides@Hiwin|Lubrication system@Automatic|Side piece measurer@Yes|Floating head@Yes|Frames device@Yes|Vacuum system@Venturi|Voltage@400V 50Hz|Machine dimensions@4445 x 2240 x 2600mm
