MILLING AND GROOVING MACHINE RMP-2C

Ref:
345001-0
REQUEST INFORMATION

Consent

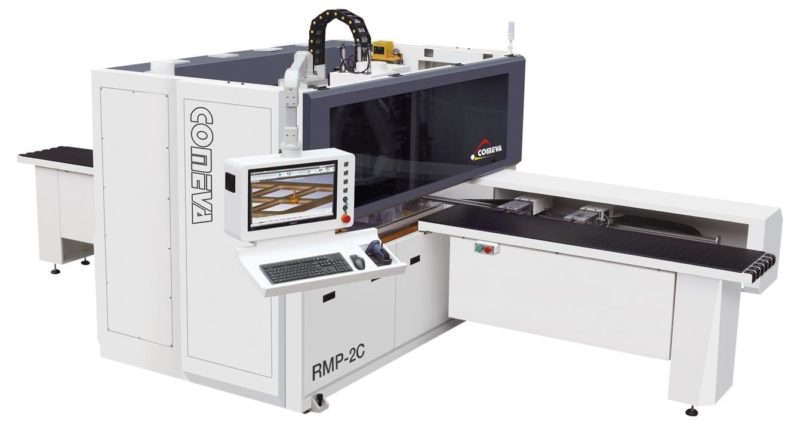

MILLING AND GROOVING MACHINE RMP-2C

Additional Information

Max./min. Door lenght@2800/200mm|Max. Working width@1200/50mm|Max./Min Door thickness@60/12mm|Max. X axis speed@85 m/min|Max. Y axis speed@60 m/min|Working table height@1020mm|TOP HEAD COMPOSITION@-|Vertical millinf motor@9 kw ATC|Motor speed@24000 rpm|Flotating motot@0.37 kw|Motor speed@12000 RPM|Locker hole motor@4.5 KW|Motor speed@18000 rpm|BOTTOM HEAD COMPOSITION@-|Vertical milling motor@3.5 kw|Motor speed@18000 rpm|Flotating motor@0.37 kw|Motor speed@12000 rpm|Hinges milling motor@1.5 kw|Motor speed@18000 rpm|Software@COMEVA DOORS|Weight@3200 KG|Dimensions@5670 x 2840 x 2400mm
