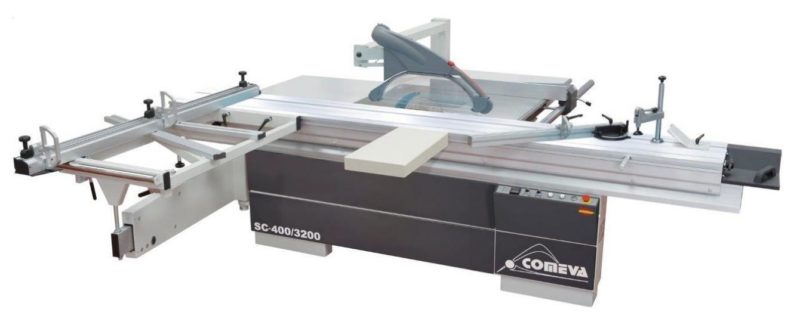

PANEL SAW SC-400/3200 (380V 3PH)

Ref:
100041-0
REQUEST INFORMATION

Consent

PANEL SAW SC-400/3200 (380V 3PH)

Additional Information

Sliding table dimension@3200 x 405mm|Cast iron table dimension@1020 x 690mm|Extension auxiliary table@1020 x 680mm|Extension auxiliary table (rea@750 x 690mm|Total table size@|Round rail@|Blade / spindle@400mm / 30mm|Max. Cut at 90º@130mm|Max. Cut at 45º@90mm|Main motor power@5,5 kw|Main blade speed (R.p.m)@3000/4000/5000|Scoring Motor Wower@0,75 kw|Scoring saw blade bore@120mm / 20mm|Scoring blade motor power@|Main blade speed (R.p.m)@8000 rpm|Cutting width@1250mm|Cutting width adjustment@Manual|Main saw blade tilting adjustm@Manual|Main saw blade height adjustme@Manual|Motorized scoring saw adjustme@|Tilt@|Dust collector@|Net weight@675 kg|Packaging dimensions (body)@2300x1300x1160mm|Packaging dimensions (sliding table)@3560x505x280mm|Packaging dimensions (over head guard)@900x400x250mm|Gross weight (body)@770 kg|Gross weight (sliding table)@165 kg|Gross weight (over head guard)@50 kg
