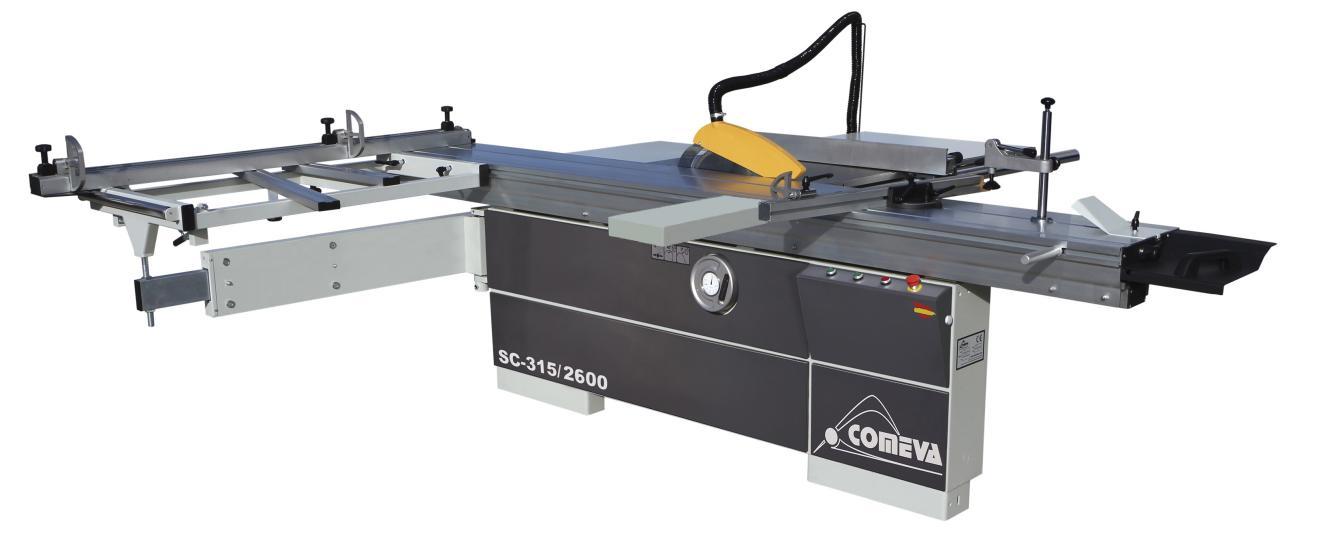

PANEL SAW SC-315/2600 (380V 3PH)

Ref:
100021-0
REQUEST INFORMATION

Consent

PANEL SAW SC-315/2600 (380V 3PH)

Additional Information

Sliding table dimension@2600 x 360mm|Cast iron table dimension@800 x 530mm|Extension auxiliary table@800 x 820mm|Extension auxiliary table (rea@440 x 530mm|Total table size@|Round rail@|Blade / spindle@315mm/30mm|Max. Cut at 90º@100mm|Max. Cut at 45º@70mm|Main motor power@4 kw|Main blade speed (R.p.m)@4000 rpm|Scoring Motor Wower@0,75 kw|Scoring saw blade bore@120mm / 20mm|Scoring blade motor power@|Main blade speed (R.p.m)@8000 rpm|Cutting width@1250 mm|Cutting width adjustment@Manual|Main saw blade tilting adjustm@Manual|Main saw blade height adjustme@Manual|Motorized scoring saw adjustme@|Tilt@|Dust collector@|Net weight@575 kg|Packaging dimensions (body)@2300x1160x1160mm|Packaging dimensions (sliding table)@2960x470x210mm|Gross weight (body)@557 kg|Gross weight (sliding table)@106 kg
