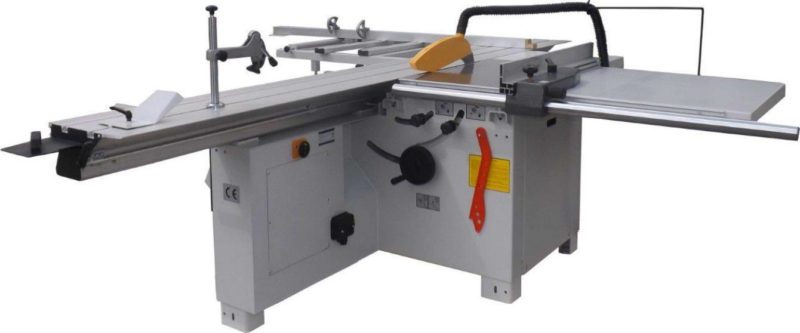

PANEL SAW SC-315/2600 (220V 1PH)

Ref:
100022-0
technical data
REQUEST INFORMATION

Consent

PANEL SAW SC-315/2600 (220V 1PH)

Additional Information

Sliding table dimension:  2600 x 360mmCast iron table dimension:  800 x 530mmExtension auxiliary table:  800 x 820mmExtension auxiliary table (rea:  440 x 530mmBlade / spindle:  315mm/30mmMax. Cut at 90º:  100mmMax. Cut at 45º:  70mmMain motor power:  4kwMain blade speed (R.p.m):  4000 rpmScoring Motor Wower:  0.75kwScoring saw blade bore:  120mm / 20mmMain blade speed (R.p.m):  8000 rpmCutting width:  1250 mmCutting width adjustment:  ManualMain saw blade tilting adjustm:  ManualMain saw blade height adjustme:  ManualNet weight:  575 kgPackaging dimensions (body):  2300x1160x1160mmPacking dimensions (sliding table):  2960x470x210mmGross weight (body):  557 kgGross weight (sliding table):  106 kg
