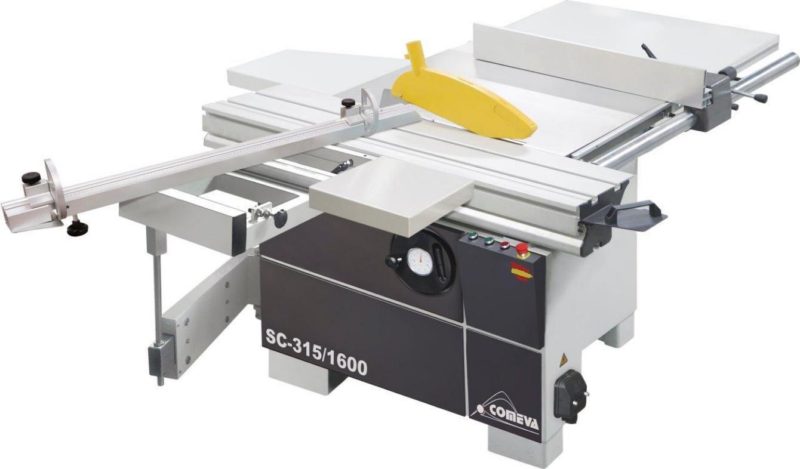

PANEL SAW SC-315/1600 (220V 1PH)

Ref:
100012-0
REQUEST INFORMATION

Consent

PANEL SAW SC-315/1600 (220V 1PH)

Additional Information

Sliding table dimension@1600 x 360 mm|Cast iron table dimension@800 x 530 mm|Extension auxiliary table@800 x 370mm|Extension auxiliary table (rea@|Total table size@|Round rail@|Blade / spindle@120mm / 30mm|Max. Cut at 90º@100 mm|Max. Cut at 45º@70 mm|Main motor power@2,5 kw|Main blade speed (R.p.m)@4000 rpm|Scoring Motor Wower@0,55 kw|Scoring saw blade bore@120mm / 20mm|Scoring blade motor power@|Main blade speed (R.p.m)@8000 rpm|Cutting width@900mm|Cutting width adjustment@Manual|Main saw blade tilting adjustm@Manual|Main saw blade height adjustme@Manual|Motorized scoring saw adjustme@|Tilt@|Dust collector@|Net weight@400 kg|Packaging dimensions (body)@1310x990x1085mm|Packaging dimensions (sliding table)@1960x425x210mm|Gross weight (body)@390 kg|Gross weight (sliding table)@74 kg
